STMicroelectronics STGI15C60S 3-Phase Inverter & IGBT SLLIMM

STMicroelectronics STGI15C60S 3-Phase Inverter and IGBT SLLIMM is a small, low-loss, intelligent molded module (SLLIMM) that provides a high-performance AC motor drive in a simple, smaller, and rugged design. It combines ST's proprietary control ICs (one LS and one HS driver) with a short-circuit-rugged trench-gate field-stop (TFS) IGBT, making it ideal for motor drives operating up to 20kHz in hard-switching circuitry.

Features

  • Intelligent Power Module (IPM) 20A, 600V, 3-phase IGBT inverter bridge, including two control ICs for gate driving and freewheeling diodes
  • 3.3V, 5V TTL/CMOS inputs with hysteresis
  • Internal bootstrap diode
  • Undervoltage lockout of gate drivers
  • Smart shutdown function
  • Short-circuit protection
  • Shutdown input/fault output
  • Separate open emitter outputs
  • Built-in temperature sensor
  • Comparator for fault protection
  • Short-circuit rugged TFS IGBT
  • Very fast, soft recovery diodes
  • Fully isolated package
  • Isolation rating of 2000Vrms/min

Applications

  • Industrial motor control
  • Washing machines
  • Air conditioner (window/wall/portable)
  • Fans
  • Pumps and compressors

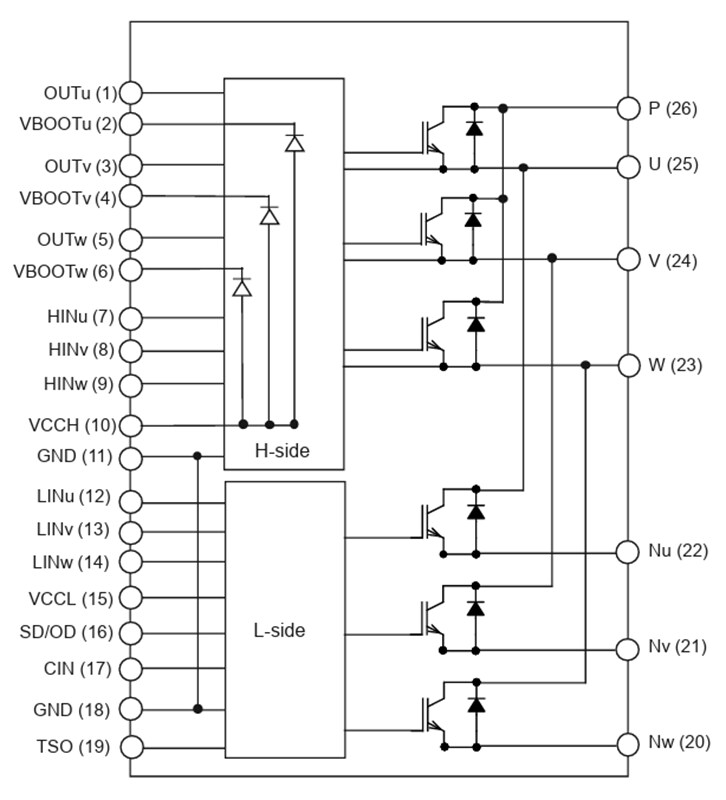

Internal Schematic

Schematic - STMicroelectronics STGI15C60S 3-Phase Inverter & IGBT SLLIMM
