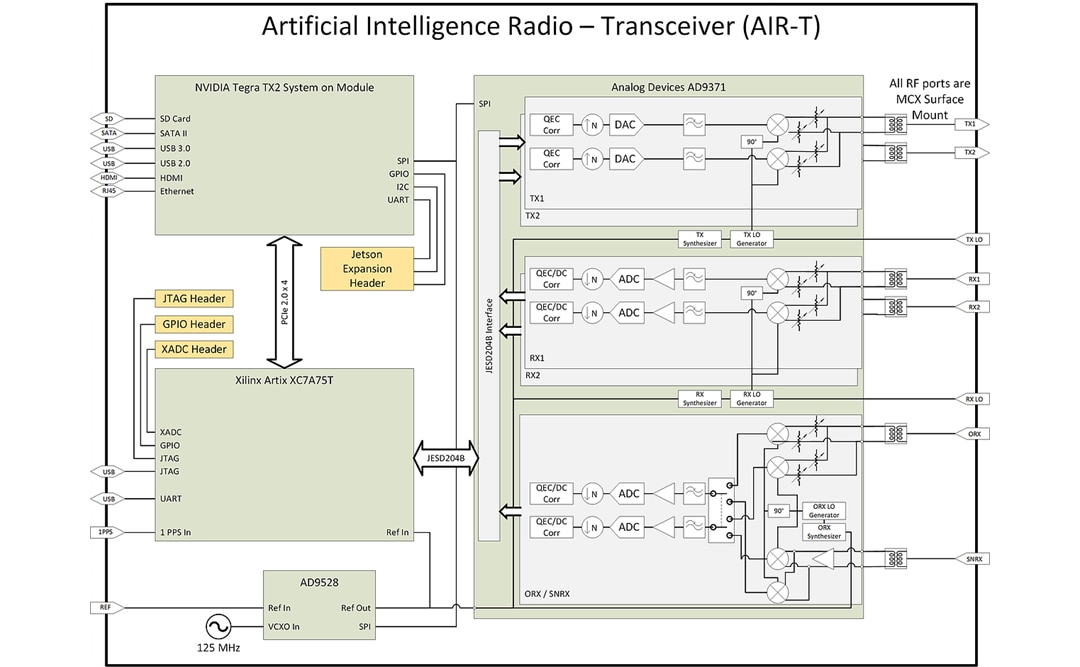

The AIR7201 AIR-T is powered by the NVIDIA Jetson TX2 and a Xilinx Artix-7 200T FPGA. Connectivity is provided by 10/100/1000 BASE-T Ethernet, IEEE 802.11a/b/g/n/ac dual-band 2x2 MIMO WLAN, and BLUETOOTH® 4.1. Additional peripherals include HDMI, SATA, SD, and USB.

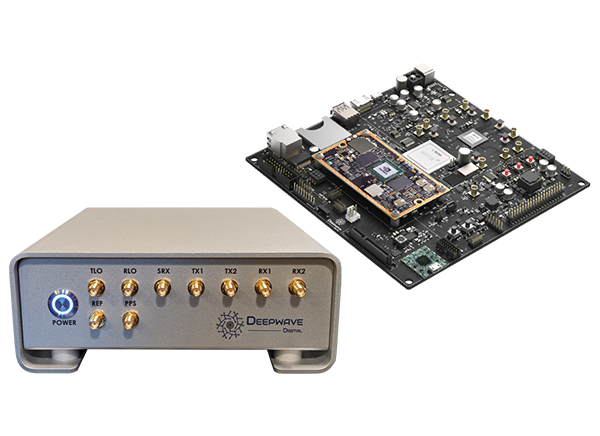

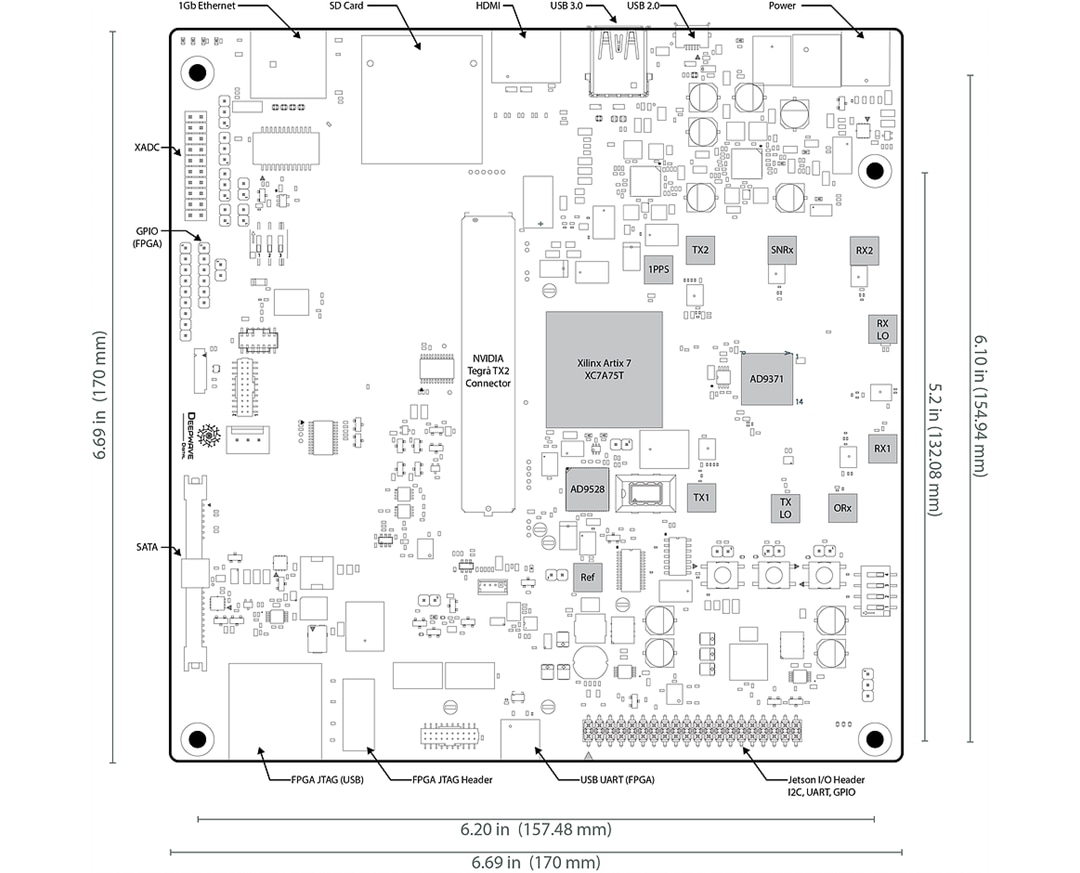

The Deepwave Digital AIR7201 Artificial Intelligence Radio-Transceiver is available as a 170.0mm x 170.0mm x 35.0mm board (AIR7201-A) and in a 192.0mm x 182.0mm x 79.0mm aluminum enclosure (AIR7201-B). For convenience, all of the RF ports are brought to the front panel and all computer peripherals connections are brought to the rear panel of the aluminum enclosure.
