KEMET EMI/RFI Suppression Capacitors
KEMET EMI/RFI Suppression Capacitors offer a maximum voltage rating of 760VAC and are ideal for capacitive power supplies. The KEMET portfolio of EMI/RFI suppression capacitors includes the following series: F861, F862, F871, F872, F873, F881, P278, P295, PHE844, PHE845, PHZ9004, PME264, PME271E, PME271M, PME271Y, PME295, PZB300, R41, R41-T, R46, R47, R49, and SMP253.

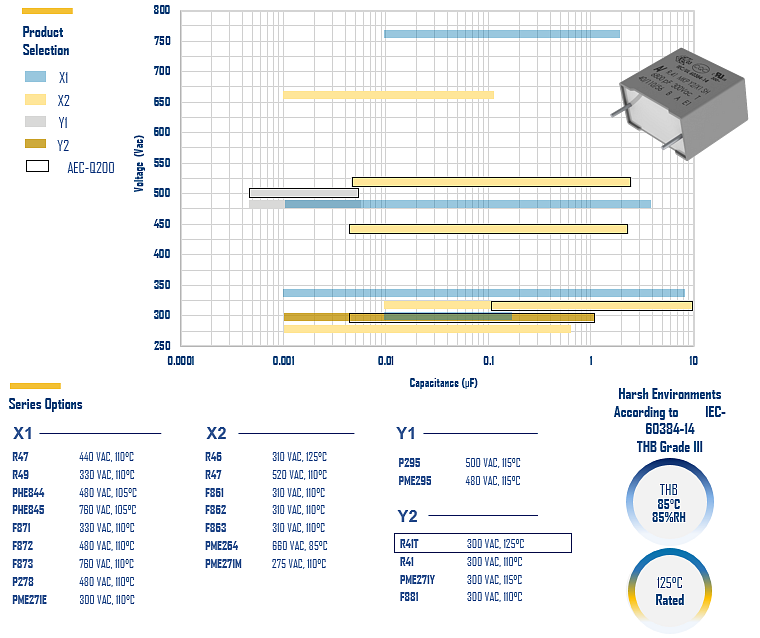

Comparison Chart

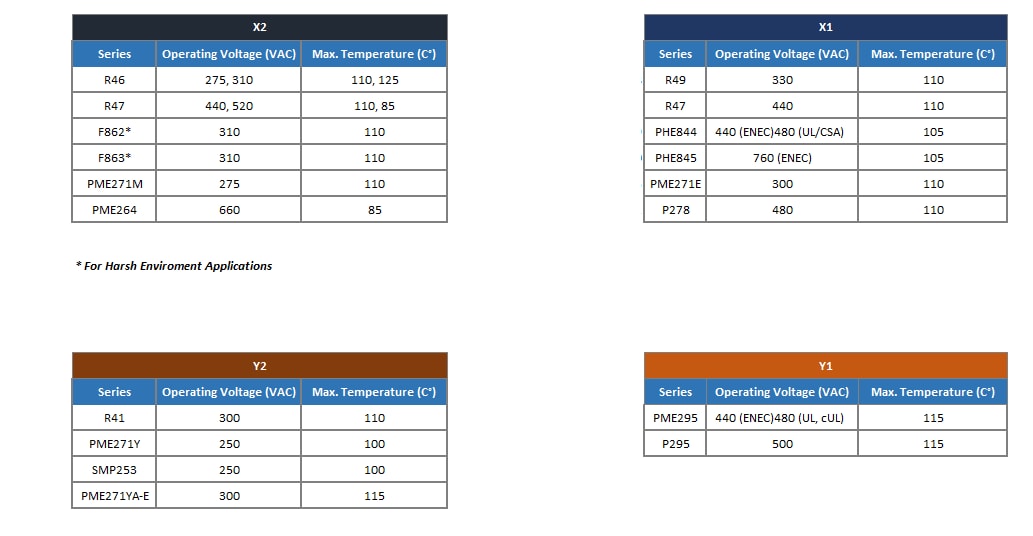

Class X & Y Specifications

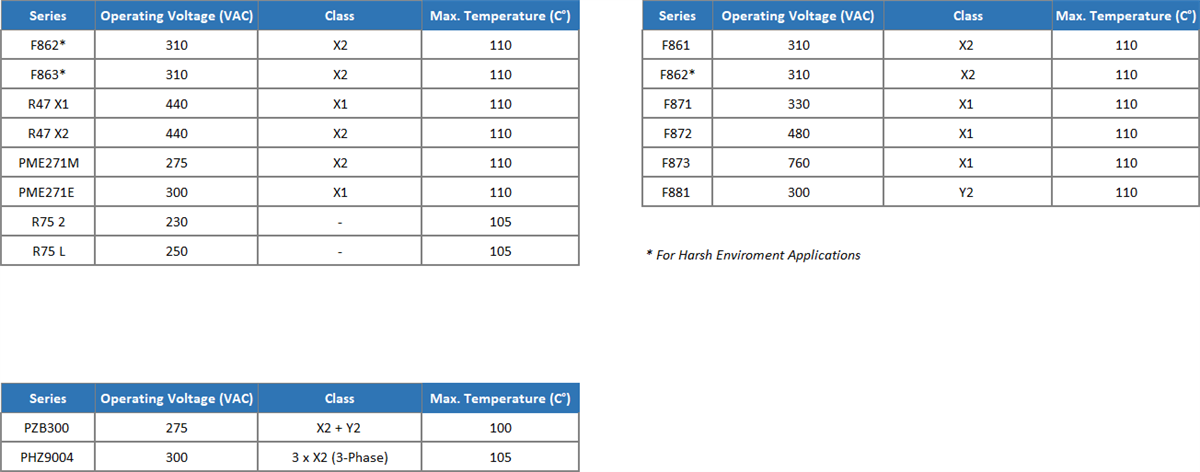

Additional Series Specifications
Videos
Featured Capacitors
KEMET R53 & R58 EMI Suppression Capacitors
Designed for situations where capacitor failure would not result in exposure to electric shock.
KEMET R52 AEC-Q200 X2 Film Capacitors
Constructed of metallized polypropylene film, meets UL 94V-0 requirements, +110°C max. temperature.
KEMET R41 & R46 Series Film Capacitors
Metallized polypropylene capacitors that have self-healing properties.
KEMET F862 Film Capacitors
Metallized polypropylene capacitors with self-extinguishing resin for severe ambient conditions.
KEMET F863 Film Capacitors
Ideal for harsh environments, meets AEC-Q200 qualification, made of metallized polypropylene film.

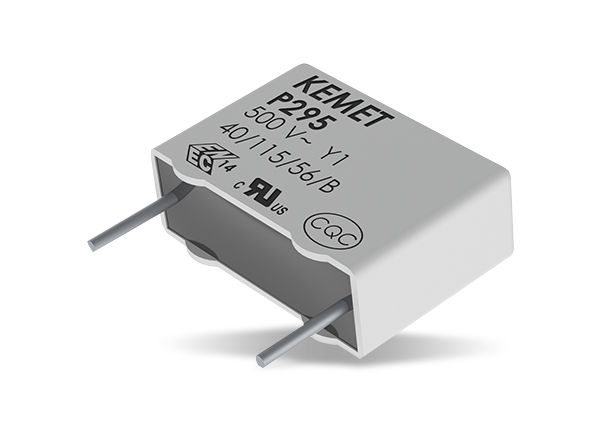

KEMET P295 Film Capacitors
Offers a rated voltage of 500VAC at 50/60Hz and a capacitance range of 470pF. to 4700pF.
KEMET PME295 Metallized Impregnated Paper Capacitors
AC line EMI suppression in a metalized paper capacitor with self-extinguishing encapsulation.
KEMET Film Capacitors
Complete line of power film & paper capacitors available in surface-mount and through-hole options.
KEMET R47 EMI Suppression Capacitors
Metallized polypropylene film encapsulated with self-extinguishing resin, meets UL 94V-0 standards.
KEMET AEC-Q200 Qualified Film Capacitors
Automotive-qualified, ranging in capacitance from 10pF to 210µF with 2% to 20% tolerances.
