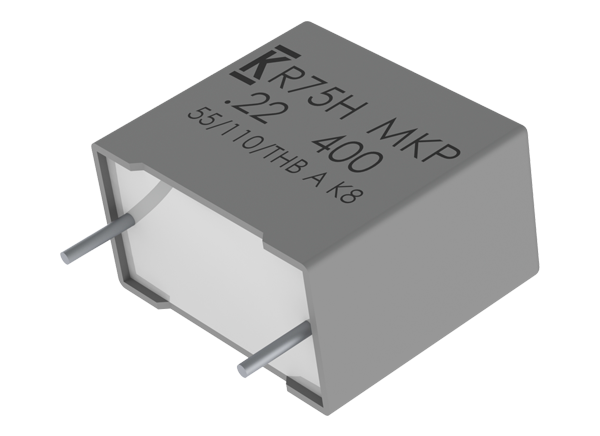

KEMET R75H AEC-Q200 Film Capacitors

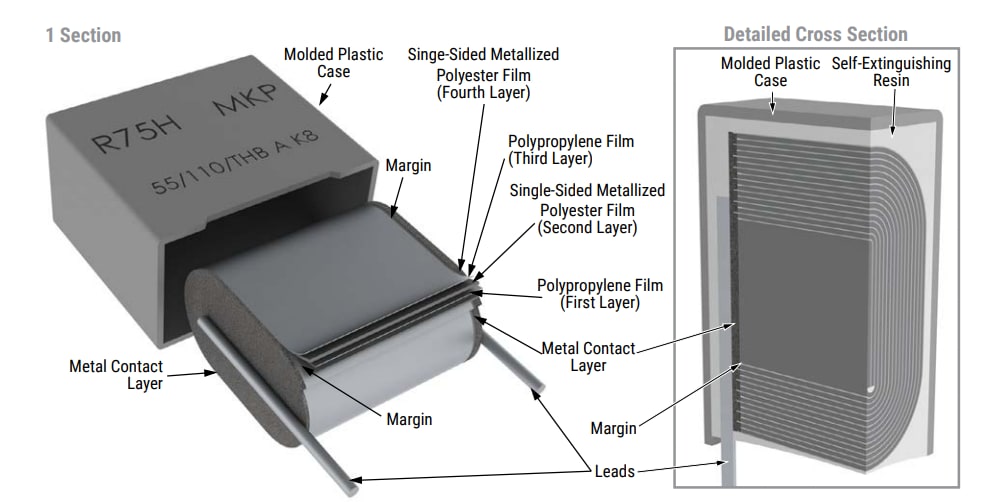

KEMET R75H AEC-Q200 Film Capacitors are constructed of metallized polypropylene film with radial leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. KEMET R75H AEC-Q200 Capacitors are encapsulated in a self-extinguishing, solvent-resistant plastic case with a thermosetting resin material that meets UL 94 V–0 requirements. The capacitors use two different winding constructions, depending on voltage parameters and lead spacing. These automotive-grade devices meet the demanding Automotive Electronics Council's AEC–Q200 qualification requirements.


  • 160VDC to 2000VDC voltage range
  • 1nf to 33µF capacitance range
  • 10mm to 37.5mm lead spacing
  • ±5%, ±10%, or ±20% capacitance tolerance
  • 55/110/56 IEC 60068–1 climatic category
  • Operating temperature range of -55°C to +125°C
  • Usable in harsh environments
  • RoHS compliant with lead-free terminations
  • Tape and reel packaging in accordance with IEC 60286–2
  • Self-healing
  • Automotive (AEC–Q200) grade


  • Resonant, Snubber, and DC Filter for:
    • OBC and DC/DC Converters for Automotive (EV and Hybrid)
    • Solar System Inverters and Micro-Inverters
    • WBG Conversion Systems (Power Supplies and Inverters)


Chart - KEMET R75H AEC-Q200 Film Capacitors

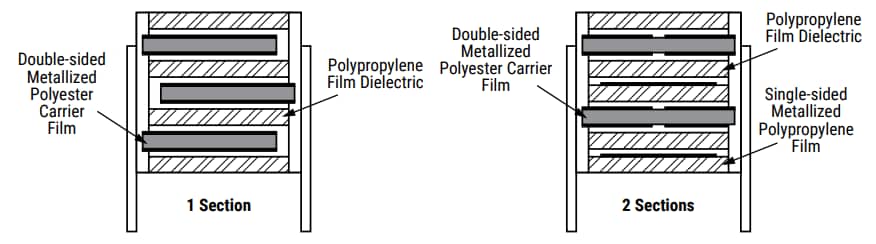

Winding Schemes
