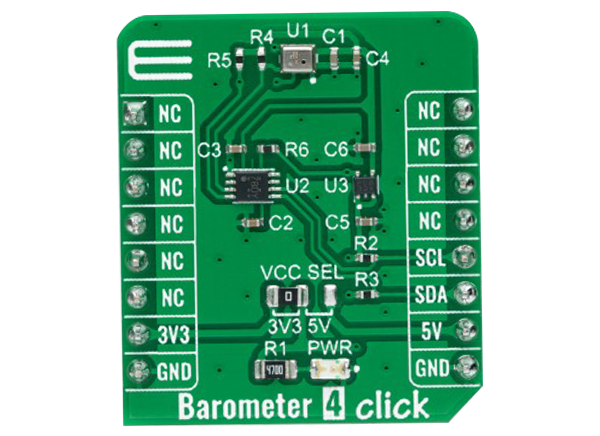

Mikroe Barometer 4 Click

Mikroe Barometer 4 Click features the TDK InvenSense ICP-10111 high accuracy low power barometric and temperature sensor. The ICP-10111 is based on MEMS capacitive technology. It provides ultra-low noise at the lowest power, enabling industry-leading relative accuracy, sensor throughput, and temperature stability. It comes with a configurable host interface that supports I²C serial communication and measures pressure in a range from 30kPa up to 110kPa with an accuracy of ±1Pa over a wide operating temperature range.

Features

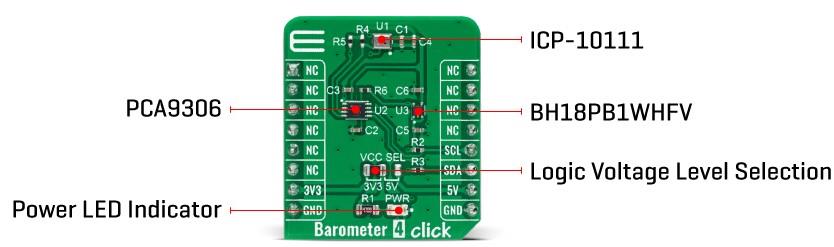

On-board modules
- TDK InvenSense ICP-10111 ultra-low power, low noise, digital output barometric pressure, and temperature sensor
Low power consumption
High precision
Embedded temperature sensor
Ultra-low noise
Temperature stability

Accuracy of ±1Pa over a wide operating temperature range
Also measure altitude differentials down to 8.5cm
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Various pressure-based applications especially when low power consumption is required
Home appliances like airflow control in HVAC, water level detection, vertical velocity monitoring, weather forecasting
