Mikroe Brushless 15 Click

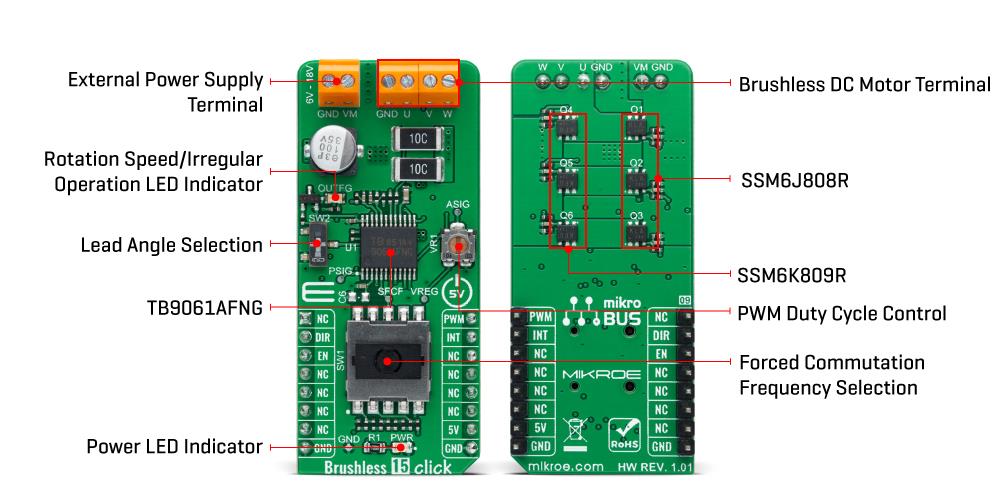

Mikroe Brushless 15 Click features the Toshiba Semiconductor TB9061AFNG automotive pre-driver that incorporates a sensorless controller. The device can be used for driving a 3-phase full-wave brushless DC motor. The TB9061AFNG achieves 120° rectangular wave motor control by using an input signal line that measures the induced voltage of the motors and three-phase motor output without using Hall sensors, rated for an operating voltage range of 6 to 18V. Motor rotation can be controlled by either the DC or the PWM input signal.


  • On-board modules
  • 3-phase full-wave sensorless drive
  • Compatible with both external PWM duty input and DC input control
  • Lead angle control
  • Rotation-speed and lock detection
  • Protection features
  • GPIO, PWM interface
  • mikroBUS compatibility
  • L (57.15mm x 25.4mm) click board size
  • 5V, external input voltage


  • Control motors without using heat-sensitive hole sensors
  • Securing control of pumps in a hot environment providing optimum operating efficiency in automotive applications
