OTTO T4 4-Way Mini Trims

OTTO Sealed T4 Mini Trims are single-pole, four-throw, center off, momentary contact (self-return-to-center off) switches with various button styles. Mini trims are typically press fit into control grips or panel mounted using versions with an 11/16” threaded case. Select models are MIL-qualified. Others are either commercial or military grade. Other OTTO mini trims include T1 2-way models, T2 large 2-way models with toggle and pushbutton action, and T5 4-way plus center pushbutton models.

Features

  • MIL-qualified options per M9419/2
  • Sealed dust tight to IP6K4 or watertight to IP6K8S or MIL-PRF-8805 Design 3
  • Variety of button styles
  • Standard and low-level switching
  • Press fit or threaded case styles

Applications

  • Industrial
  • Defense
  • Aerospace
  • Commercial aviation
  • Off-highway

Specifications

  • Materials
    • Aluminum alloy or thermoplastic case
    • Thermoplastic button
    • Silver over brass, brass with gold over silver for low-level terminals
  • Up to 100,000 electrical life cycles 1A inductive at 28VDC
  • -55°C to +85°C operating temperature range
  • 16oz ± 6oz actuating force

Dimensions

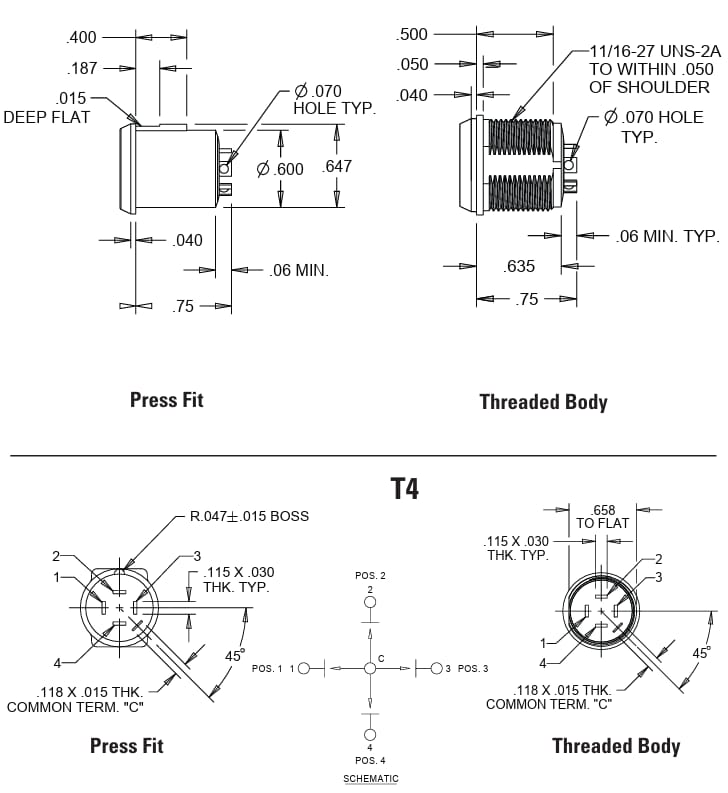

Mechanical Drawing - OTTO T4 4-Way Mini Trims

Part Number Code

OTTO T4 4-Way Mini Trims

Mini Trims

OTTO Mini Trim Switches

Available features include actuation, mounting, circuitry, button styles, and colors.

Learn Moreabout OTTO Mini Trim Switches View Productsrelated to OTTO Mini Trim Switches
View Results ( 163 ) Page
Part Number Datasheet Current Rating IP Rating
T4-TME4332 T4-TME4332 Datasheet 2 A IP68S
T4-TCN3112 T4-TCN3112 Datasheet 2 A IP64
T4-MH2312 T4-MH2312 Datasheet 10 mA IP68S
T4-CM211N T4-CM211N Datasheet 10 mA IP64
T4-MJ2312 T4-MJ2312 Datasheet 10 mA IP68S
T4-TMJ3328 T4-TMJ3328 Datasheet 10 mA IP68S
T4-0032 T4-0032 Datasheet IP68S
T4-CP111N T4-CP111N Datasheet 10 mA IP64
T4-TCD3312 T4-TCD3312 Datasheet 2 A IP68S
T4-CN211N T4-CN211N Datasheet 10 mA IP64
