Renesas Electronics RAJ240055 R-BMS F Evaluation Kit
Renesas Electronics RAJ240055 R-BMS F Evaluation Kit is a 2 to 4S cell (~8V to 16V) solution designed for small vacuum cleaners, robotic vacuums, and consumer and medical devices. The kit is powered by the RAJ240055 Li-ion battery FGIC, a 2 to 4 Series Li-ion Battery Fuel Gauge IC that combines separate MCU and AFE blocks in a single package to achieve various battery protection and management operations.
The Renesas RAJ240055 R-BMS F Evaluation Kit features an evaluation module (RTK0EF0163DK02BU), a USB System Management Bus (SMBus), and an interface adaptor that evaluates the battery management system employing the RAJ240055 Li-ion battery Fuel Gauge IC (FGIC). Furthermore, the kit includes R-BMS F firmware, which is fixed and easy-to-use software that needs no additional development and has user-configurable settings for specifying the different thresholds of the device. The evaluation kit allows a seamless transition from evaluation to customer qualification without requiring firmware development.
Features
- Complete evaluation system for the RAJ240055 with a 2 to 4-cell Li-ion battery
- An optimized circuit module for a 2-cell to 4-cell configuration for quick setup
- SMBus I/F communication
- Built-in resistor cell simulator for quick setup and minimum wire connections
- GUI-based PC software for configuration
Applications
- Portable power system
- Handheld electronics
- Cleaner
- Industrial
Kit Contents
- EVM for evaluating R-BMS F with RAJ240055 FGIC
- USB SMBus interface adapter
- USB cable for connecting the SMBus I/F to the PC
- Serial cable to connect the SMBus I/F to the EVM
Kit
Renesas Electronics RAJ240090/100 R-BMS F Evaluation Kit
A 3 to 10S cell (~12V to 40V) solution operated by the RAJ240100 & RAJ240090 Li-ion battery FGICs.

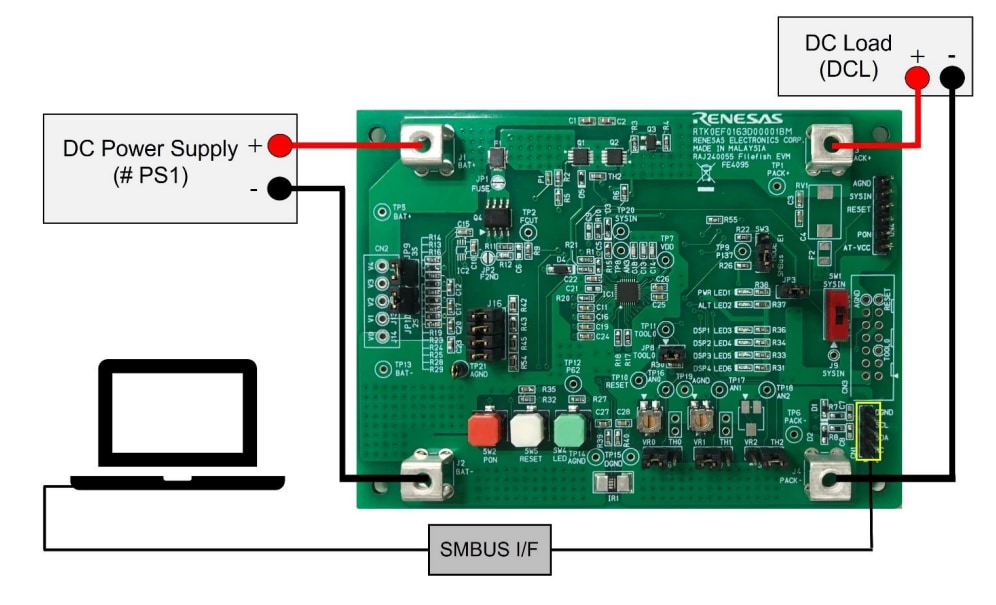

Evaluating with a Load Current

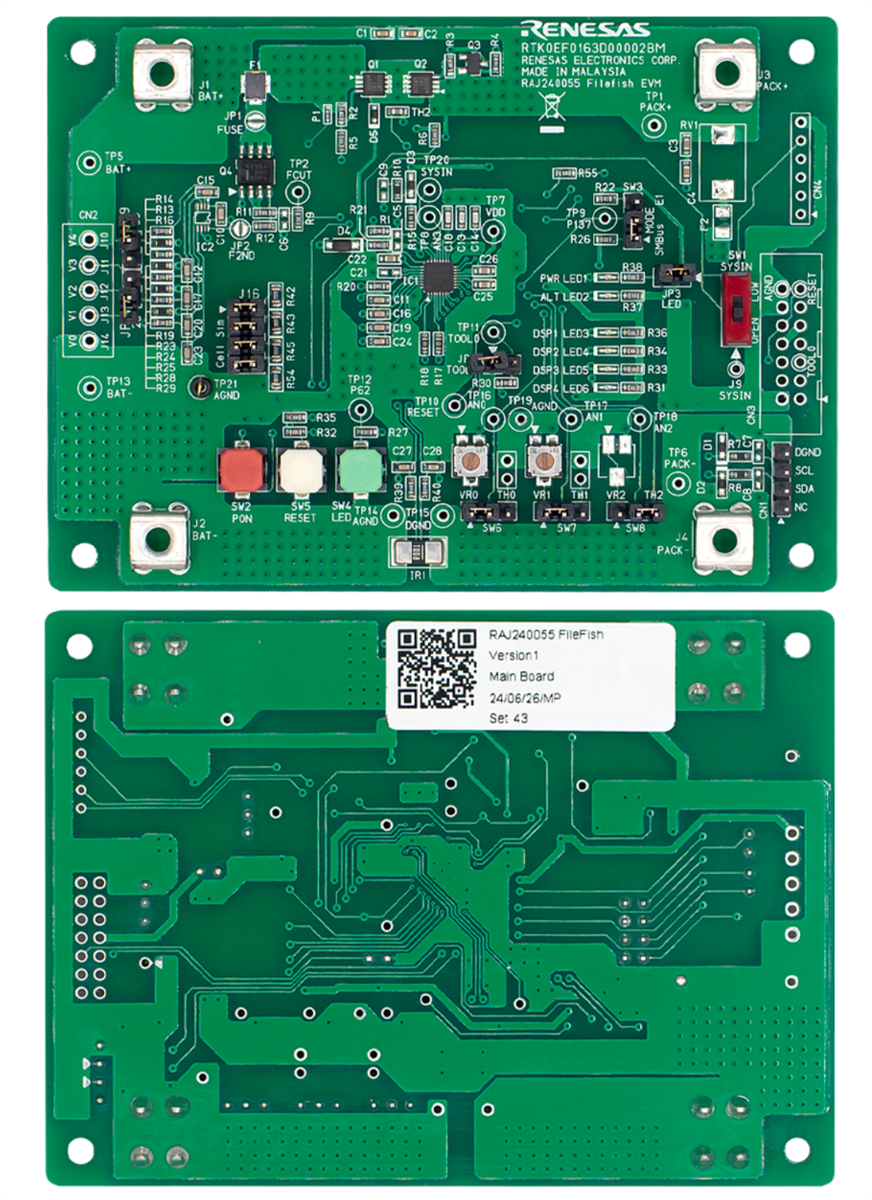

Layout
