Vishay / Dale CRCW-P Thick Film Chip Resistors
Vishay CRCW-P Resistors are thick film, rectangular, semi-precision chip resistors. These resistors feature low-temperature coefficients (50 ppm/K) and tight tolerances (± 0.25 %). The CRCW-P resistors operate at >109 insulation resistance, -55°C to 155°C temperature range, and they metal glaze on high-quality ceramic.
Features
- D/CRCW-P e3:
- Pure tin plating provides compatibility with lead (Pb)-free and lead-containing soldering processing
- AEC-Q200 qualified
- D/CRCW-P:
- Lead (Pb)-bearing termination plating on Ni barrier layer
- Low-temperature coefficient (50ppm/K)
- Tight tolerances (±0.25%)
- Metal glaze on high-quality ceramic
Specifications
- D/CRCW-P e3
- <0.1 x 10-9 of failure rate
- D/CRCW-P
- 0.3 x 10-9 of failure rate
- -55°C to 155°C temperature range
- >109 of insulation resistance

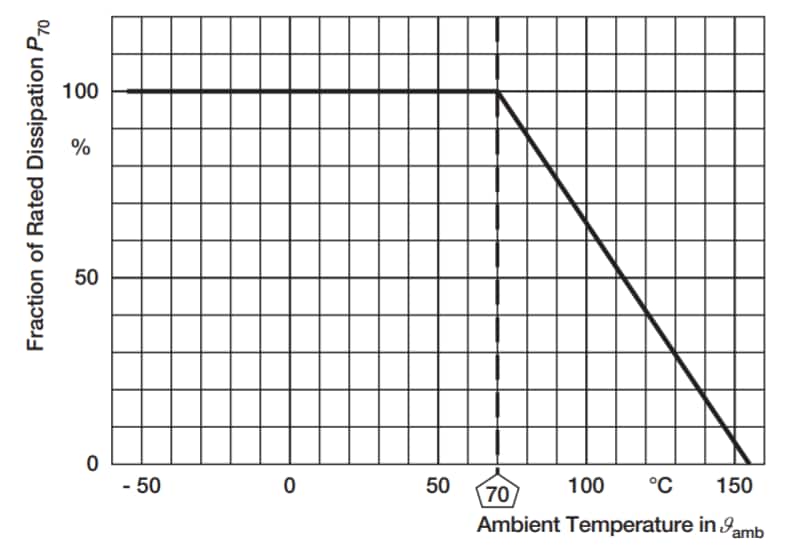

Functional Performance
Related Product
Vishay / Dale CRCW0201 Thick Film Chip Resistors
A thick-film, high-volume product suitable for commercial applications.
Vishay / Dale CRCW Lead-Bearing Thick Film Chip Resistors
Features lead-bearing termination plating on a Ni-barrier layer.
Vishay CR High Voltage Thick Film Chip Resistors
High-voltage surface-mount thick film chip resistors.
Related Solutions
Vishay Transportation Systems Solutions
A wide range of transportation solutions designed with a wide range of functions & products.
View Results ( 2456 ) Page
| Part Number | Mfr Name | Description | Datasheet | Series | Resistance | Power Rating | Temperature Coefficient | Voltage Rating | Height | Length | Width | Standard Pack Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRCW060333K0FHEAP | Vishay | Thick Film Resistors - SMD D11/CRCW0603-P 50 33K 1% ET1 e3 |  |
DCRCW-P e3 | 33 kOhms | 100 mW (1/10 W) | 50 PPM / C | 75 V | 0.45 mm (0.018 in) | 1.6 mm (0.063 in) | 0.85 mm (0.033 in) | 5000 |
| CRCW0402681RFHEDP | Vishay | Thick Film Resistors - SMD D10/CRCW0402-P 50 681R 1% ET7 E3 | |
DCRCW-P e3 | 63 mW (1/16 W) | 50 V | 10000 | |||||
| CRCW0603200KFHEAP | Vishay | Thick Film Resistors - SMD D11/CRCW0603-P 50 200K 1% ET1 e3 | |
DCRCW-P e3 | 200 kOhms | 100 mW (1/10 W) | 50 PPM / C | 75 V | 0.45 mm (0.018 in) | 1.55 mm (0.061 in) | 0.85 mm (0.033 in) | 5000 |
| CRCW0603220KFHEAP | Vishay | Thick Film Resistors - SMD D11/CRCW0603-P 50 220K 1% ET1 e3 | |
DCRCW-P e3 | 220 kOhms | 100 mW (1/10 W) | 50 PPM / C | 75 V | 0.45 mm (0.018 in) | 1.55 mm (0.061 in) | 0.85 mm (0.033 in) | 5000 |
| CRCW0805750RFHEAP | Vishay | Thick Film Resistors - SMD D12/CRCW0805-P 50 750R 1% ET1 E3 | |
DCRCW-P e3 | 750 Ohms | 125 mW (1/8 W) | 50 PPM / C | 150 V | 0.45 mm (0.018 in) | 2 mm (0.079 in) | 1.25 mm (0.049 in) | 5000 |
| CRCW120656K0FHEAP | Vishay | Thick Film Resistors - SMD D25/CRCW1206-P 50 56K 1% ET1 E3 | |
DCRCW-P e3 | 56 kOhms | 250 mW (1/4 W) | 50 PPM / C | 200 V | 0.55 mm (0.022 in) | 3.2 mm (0.126 in) | 1.6 mm (0.063 in) | 5000 |
| CRCW1206681RFHEAP | Vishay | Thick Film Resistors - SMD D25/CRCW1206-P 50 681R 1% ET1 e3 | |
DCRCW-P e3 | 681 Ohms | 250 mW (1/4 W) | 50 PPM / C | 200 V | 0.55 mm (0.022 in) | 3.2 mm (0.126 in) | 1.6 mm (0.063 in) | 5000 |
| CRCW12066K80FHEAP | Vishay | Thick Film Resistors - SMD D25/CRCW1206-P 50 6K8 1% ET1 e3 | |
DCRCW-P e3 | 6.8 kOhms | 250 mW (1/4 W) | 50 PPM / C | 200 V | 0.55 mm (0.022 in) | 3.2 mm (0.126 in) | 1.6 mm (0.063 in) | 5000 |
| CRCW120682K0FHEAP | Vishay | Thick Film Resistors - SMD D25/CRCW1206-P 50 82K 1% ET1 E3 | |
DCRCW-P e3 | 82 kOhms | 250 mW (1/4 W) | 50 PPM / C | 200 V | 0.55 mm (0.022 in) | 3.2 mm (0.126 in) | 1.6 mm (0.063 in) | 5000 |
| CRCW06031M60FHEAP | Vishay | Thick Film Resistors - SMD D11/CRCW0603-P 50 1M6 1% ET1 E3 | |
DCRCW-P e3 | 5000 |
