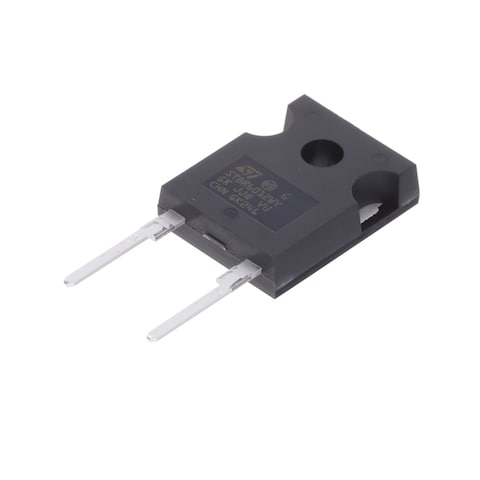

STBR6012WY

Name: STMicroelectronics STBR6012WY
Brand: STMicroelectronics
SKU: 511-STBR6012WY
Price: 4.69 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-STBR6012WY

Mfr. No:

STBR6012WY

Mfr.:

STMicroelectronics

Description:

Rectifiers Automotive 1200 V, 60 A Bridge Rectifier diode

Complete Your Design

Datasheet:

STBR6012WY Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STBR6012WY

In Stock: 512

Stock:: 512 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 25 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,69 €	4,69 €
	2,26 €	22,60 €
	2,09 €	209,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Rectifiers
RoHS:
Mounting Style:	Through Hole
Package/Case:	DO-247-2
Vr - Reverse Voltage:	1.2 kV
If - Forward Current:	60 A
Type:	Standard Recovery Rectifier
Configuration:	Single
Vf - Forward Voltage:	1.05 V
Max Surge Current:	500 A
Ir - Reverse Current:	25 uA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 175 C
Series:	STBR6012-Y
Qualification:	AEC-Q101
Packaging:	Tube
Brand:	STMicroelectronics
Product:	Rectifiers
Product Type:	Rectifiers
Factory Pack Quantity:	600
Subcategory:	Diodes & Rectifiers
Unit Weight:	4,400 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STBR6012WY Datasheet (PDF)

PCN

TARIC:: 8541100000
CNHTS:: 8541100000
CAHTS:: 8541100090
USHTS:: 8541100080
JPHTS:: 854110090
KRHTS:: 8541109000
MXHTS:: 8541100101
ECCN:: EAR99

STBR6012-Y Automotive High Voltage Rectifier

STMicroelectronics STBR6012-Y Automotive High Voltage Rectifier features a high-quality design that results in consistently reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long-term reliability like automotive applications. The STBR6012-Y is especially suitable for use as an input bridge diode in battery chargers, thanks to its ultralow conduction losses.

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.
