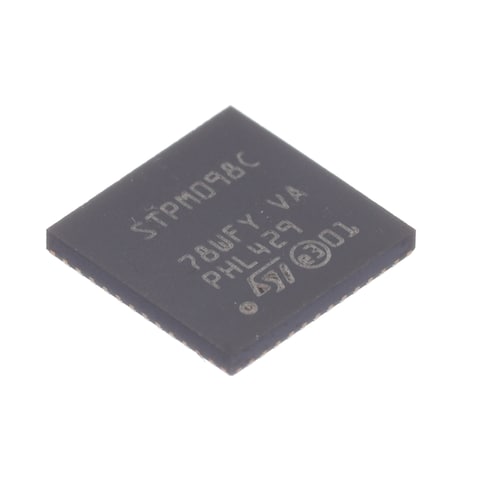

STPM098C-TR

Name: STMicroelectronics STPM098C-TR
Brand: STMicroelectronics
SKU: 511-STPM098C-TR
Price: 11.4 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-STPM098C-TR

Mfr. No:

STPM098C-TR

Mfr.:

STMicroelectronics

Description:

Power Management Specialised - PMIC Automotive Dual Digital 8-phase Controller with PMBus

Complete Your Design

Lifecycle:

New Product:

New from this manufacturer.

Datasheet:

STPM098C-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STPM098C-TR

In Stock: 205

Stock:: 205 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	11,40 €	11,40 €
	9,27 €	92,70 €
	8,84 €	221,00 €
	7,68 €	768,00 €
	7,33 €	1 832,50 €
	6,68 €	3 340,00 €
	5,85 €	5 850,00 €
Full Reel (Order in multiples of 2500)
	5,70 €	14 250,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Power Management Specialised - PMIC
RoHS:
Type:	Automotive Dual Digital 8-phase Controller
Mounting Style:	SMD/SMT
Package/Case:	VFQFN-48
Output Current:	200 mA
Input Voltage - Max:	5.25 V
Input Voltage - Min:	4.75 V
Maximum Output Voltage:	2 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Application:	ADAS Systems, Microprocessors
Brand:	STMicroelectronics
Moisture Sensitive:	Yes
Operating Supply Voltage:	4.75 V to 5.25 V
Output Voltage Range:	500 mV to 2 V
Product:	Power Managements
Product Type:	Power Management Specialized - PMIC
Factory Pack Quantity:	2500
Subcategory:	PMIC - Power Management ICs
Unit Weight:	150 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STPM098C-TR Datasheet (PDF)

PCN

This functionality requires JavaScript to be enabled.

TARIC:: 8542399000
CNHTS:: 8542399000
CAHTS:: 8542310000
USHTS:: 8542310030
MXHTS:: 8542399999
ECCN:: EAR99

STPM098C Dual Digital 8-Phase Controller

STMicroelectronics STPM098C Dual Digital 8-Phase Controller is a dual-loop digital multi-phase buck controller with built-in nonvolatile memory (NVM) and PMBus™ interface for automotive applications. STPM098C is used to manage the power of loads that require high power, such as processor cores and memories. It controls up to eight external drivers+MOS and, with its two loops, allows the supply of up to two different voltages. An advanced control loop architecture based on a constant on-time (COT) scheme provides fast transient responses and high efficiency. The device also includes phase interleaving and dynamic phase add/drop for efficiency enhancement for light load ranges.
