FCS8-20-01-L-S-A-TR

Name: Samtec FCS8-20-01-L-S-A-TR
Brand: Samtec
SKU: 200-FCS82001LSATR
Price: 3.74 EUR
Availability: InStock

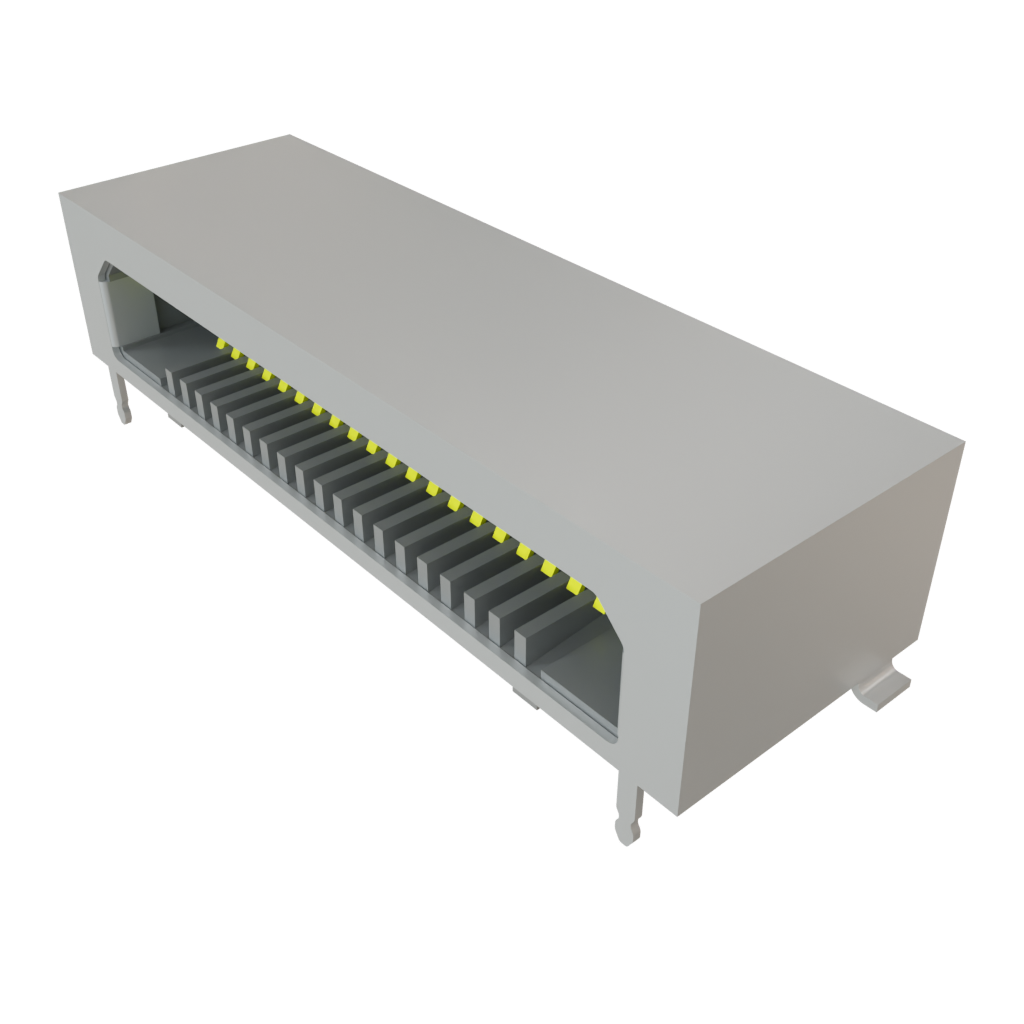

Images are for reference only
See Product Specifications

Mouser No:

200-FCS82001LSATR

Mfr. No:

FCS8-20-01-L-S-A-TR

Mfr.:

Samtec

Description:

I/O Connectors 0.80 mm High-Speed Cost-Effective Micro Coax Cable

Datasheet:

FCS8-20-01-L-S-A-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1 324

Stock:: 1 324 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 375)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	3,74 €	3,74 €
	3,39 €	84,75 €
	3,15 €	157,50 €
	2,99 €	299,00 €
Full Reel (Order in multiples of 375)
	2,99 €	1 121,25 €
	2,91 €	2 182,50 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	I/O Connectors
RoHS:
Product:	High Speed I/O Connectors
Gender:	Female
Number of Positions:	20 Position
Pitch:	0.8 mm
Voltage Rating:	260 VAC
Contact Plating:	Gold
Mounting Style:	Mounting Peg
Termination Style:	SMD/SMT
Mounting Angle:	Right Angle
Minimum Operating Temperature:	- 25 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Samtec
Color:	Black
Contact Material:	Liquid Crystal Polymer (LCP)
Current Rating:	1.8 A
Flammability Rating:	UL 94 V-0
Housing Material:	Liquid Crystal Polymer (LCP)
Number of Ports:	1 Port
Product Type:	I/O Connectors
Factory Pack Quantity:	375
Subcategory:	I/O Connectors
Type:	Socket
Unit Weight:	2,338 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
