ISDF-45-D-M

Name: Samtec ISDF-45-D-M
Brand: Samtec
SKU: 200-ISDF-45-D-M
Price: 3.38 EUR
Availability: InStock

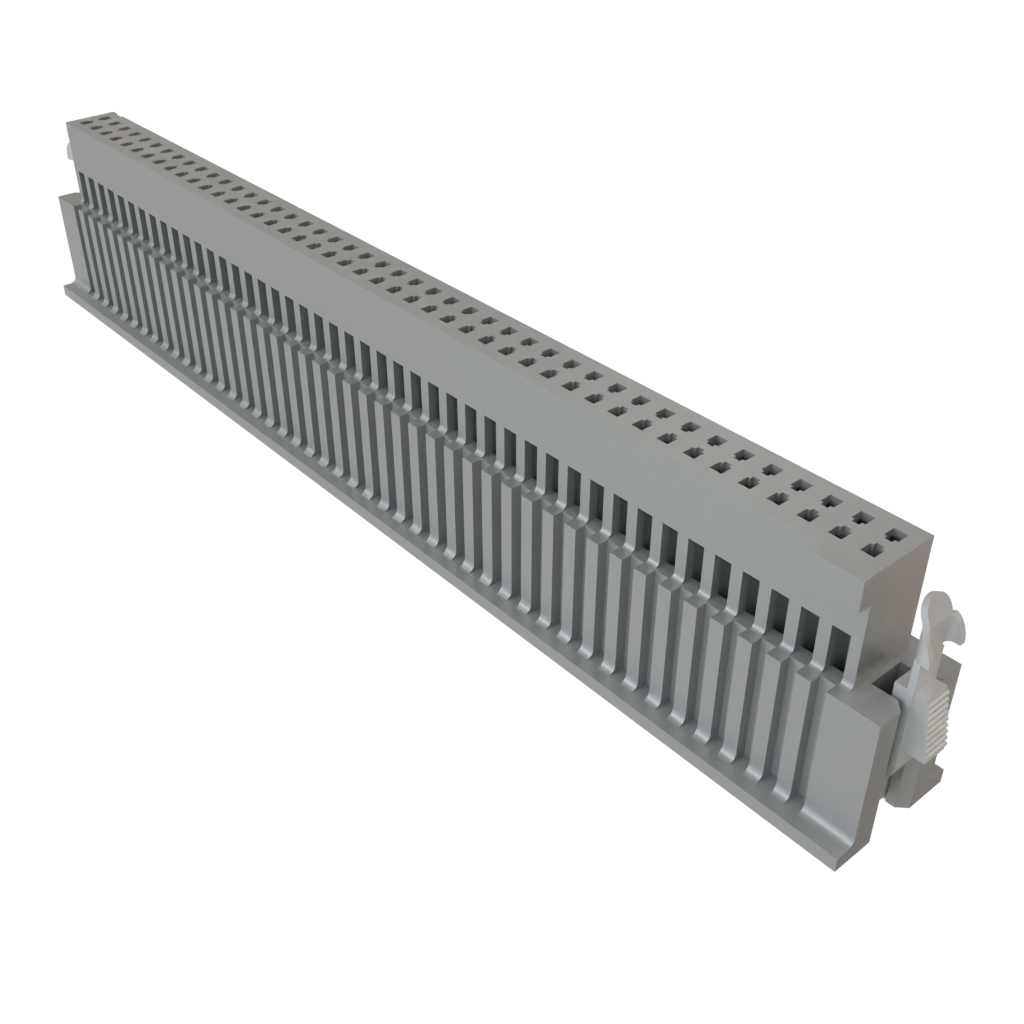

Images are for reference only
See Product Specifications

Mouser No:

200-ISDF-45-D-M

Mfr. No:

ISDF-45-D-M

Mfr.:

Samtec

Description:

Headers & Wire Housings .050 Tiger Eye Discrete Wire Socket Housing

Datasheet:

ISDF-45-D-M Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ISDF-45-D-M

In Stock: 27

Stock:: 27 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,38 €	3,38 €
	2,75 €	148,50 €
	2,39 €	258,12 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Mounting Style:	Cable Mount / Free Hanging
Mounting Angle:	Straight
Series:	ISDF
Tradename:	Tiger Eye
Packaging:	Tube
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Female
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Latched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	9
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ISDF-45-D-M Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.
