747516-9

Name: TE Connectivity 747516-9
Brand: TE Connectivity
SKU: 571-747516-9
Price: 10.37 EUR
Availability: InStock

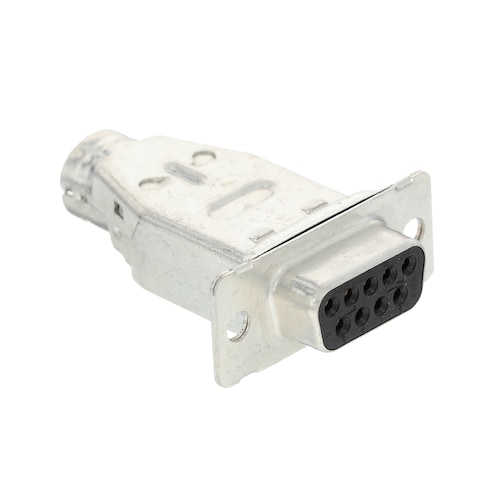

Images are for reference only
See Product Specifications

Mouser No:

571-747516-9

Mfr. No:

747516-9

Mfr.:

TE Connectivity

Description:

D-Sub Standard Connectors KIT RCPT 9P HDE SHLD HDWRE

Datasheet:

747516-9 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 747516-9

In Stock: 476

Stock:: 476 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,37 €	10,37 €
	8,81 €	88,10 €
	8,26 €	206,50 €
	7,86 €	393,00 €
	7,49 €	749,00 €
	6,81 €	3 405,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	D-Sub Standard Connectors
RoHS:
Number of Positions:	9 Position
Contact Gender:	Socket (Female)
Termination Style:	IDC
Mounting Style:	Wire
Mounting Angle:	Straight
Number of Rows:	2 Row
Gender:	Female
Contact Plating:	Gold
Type:	Receptacle
Shell Size:	1 (E)
Shell Material:	Steel
Shell Plating:	Tin
Filtered:	Unfiltered
Series:	HDE-20
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Insulation Material:	Thermoplastic
Product Type:	D-Sub Connectors - Standard Density
Factory Pack Quantity:	1
Subcategory:	D-Sub Connectors
Tradename:	AMPLIMITE
Unit Weight:	12 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

747516-9 Datasheet

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8536901100
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AMPLIMITE D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE D-Subminiature Connectors are compact pin and socket connectors designed especially for high-density packages. The D-Subminiature connectors are designed for multiple applications along with specialized accessories that provide a cost-effective solution for complex applications. TE AMPLIMITE Standard D-Subminiature connectors are available with MIL-DTL-24308 qualification.

AMPLIMITE Standard D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE Standard D-Subminiature Connectors feature a UL 94V-0 rating, 4 to 40 threaded inserts, and HD-20 and HD-22 availability. AMPLIMITE Standard Connectors have front metal, full metal, and plastic shell features that allow the choice of connectors with suitable durability. TE AMPLIMITE Standard D-Subminiature Connectors have a rugged, easy-to-use design ideal for industrial controls, factory automation, base stations, and consumer electronics.
