Infineon Technologies AS5173 Magnetic Position Sensor

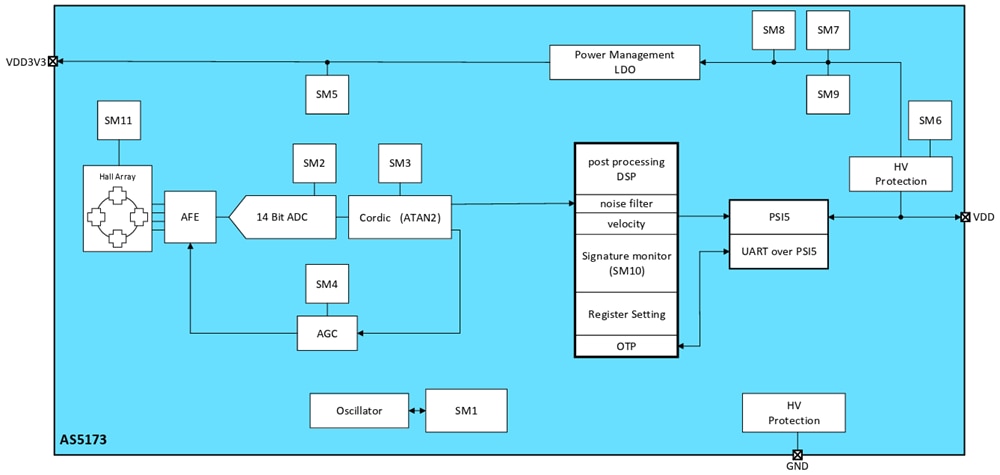

Infineon Technologies AS5173 Magnetic Position Sensor comes with a high-resolution 12-bit or 14-bit PSI5 output, in accordance with the PSI5 specification, Versions 1.3 and 2.3. Based on Hall sensor technology, this device measures the flux density Bz orthogonal to the die surface, over a full-turn rotation. The Infineon Technologies AS5173 compensates for external stray magnetic fields with a robust architecture that uses a 14-bit sensor array and an analog front-end (AFE). A sub-range smaller than 360° can be programmed to achieve excellent resolution for the application. A two-pole magnet rotating over the center of the package is required to measure the angle.
Features
- 12- or 14-bit resolution
- ASIL-B(C)as SEooC, compliant with ISO26262 safety
- Automotive AEC-Q100 Grade-1 (-40°C to +125°C)
- Accuracy
- Better than 0.9° (worst case)
- 0.4° (typical)
- Noise filter
- PSI5 v1.3 and PSI5 v2.3 output
- UART_over_PSI5
- Programmable application range
- Magnetic stray field immunity
- Suitable for safety-critical applications
- SIP3 package
- Customer adjustable noise reduction
- Supply and communication over two wires
- In system programming over two wires
- Ideal for applications <360°
- Robust and no magnetic shielding needed
- ASIL-B(C)
- Low system cost and smaller BOM
Applications
- Chassis Position Sensors (CPS)
- Automotive pedals
- Throttle valves
- Tumble flaps
- Steering angle sensors
- Fuel level measurement systems
