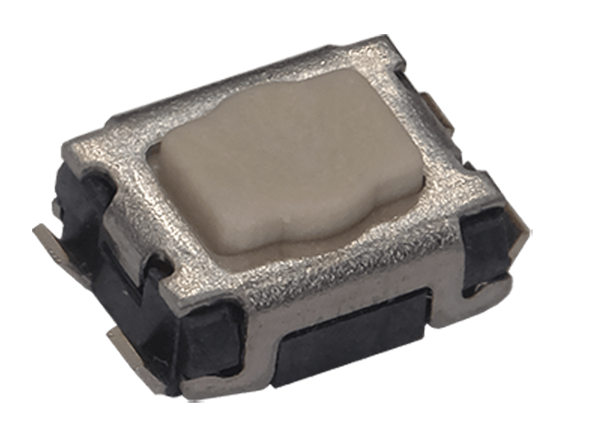

C&K Switches RKC2 Microminiature SMT Top Actuated Tact Switch features 3.5mm x 2.7mm dimensions, 1.7mm low-profile height, and SMT termination. The RKC2 series offers 20mA maximum DC current, 12VDC rating, 100K to 200K life cycles, and 180gf, 250gf, 350gf, and 500gf actuation forces. C&K Switches RKC2 Microminiature SMT Top Actuated Tact Switch is ideal for automotive key fobs, high-end consumer products, and health and medical devices.
1.7mm low-profile height
3.5mm x 2.7mm dimensions
180gf, 250gf, 350gf, and 500gf actuation forces
100K to 200K life cycles
12VDC voltage rating
20mA maximum DC current
100mΩ contact resistance
-40°C to +85°C operating temperature range
Automotive key fobs
High-end consumer products
Health and medical devices
