ebm-papst EC Modular Plenum Fans
ebm-papst EC Modular Plenum Fans provide a lighter, smaller, and more efficient design than traditional AC motor/fan combinations. Plenum fans feature internal drive electronics, an integral mounting plate, and a pressure tap. These EC fans from ebm-papst are available in 4.5kW to 8kW variants and offer up to 2810RPM, a 3802W to 7011W power range, and a maximum current draw of 10.4A. The modular plenum fans are designed for North American retrofit projects in air conditioning, data centers, heating, refrigeration, and ventilation markets.
Features
- Lightweight, compact design
- Internal drive electronics
- Integral mounting plate
- Pressure tap
Applications
- For North American retrofit projects
- Air conditioning
- Data centers
- Heating
- Refrigeration
- Ventilation
Specifications
- 3802W to 7011W power range
- 4.5kW to 8kW variants
- Up to 2810RPM
- 200VAC to 480VAC nominal voltage range
- Maximum current draw of 10.4A
Dimensions

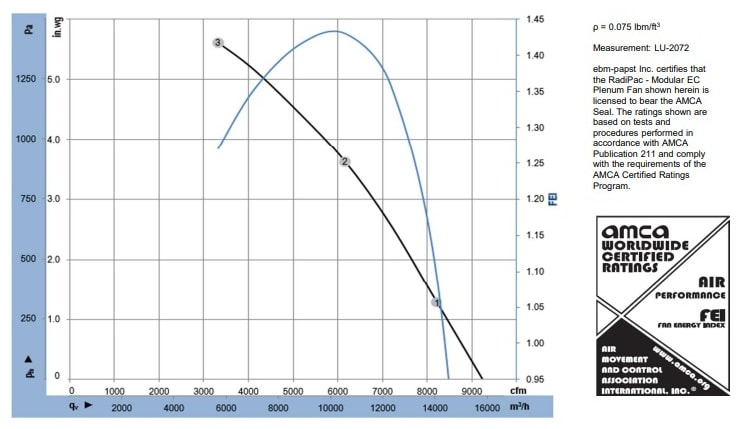

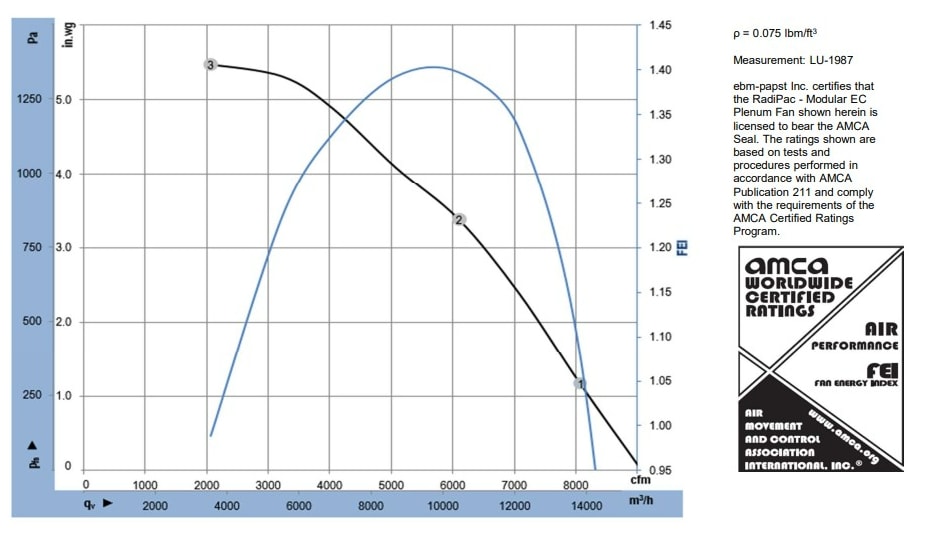

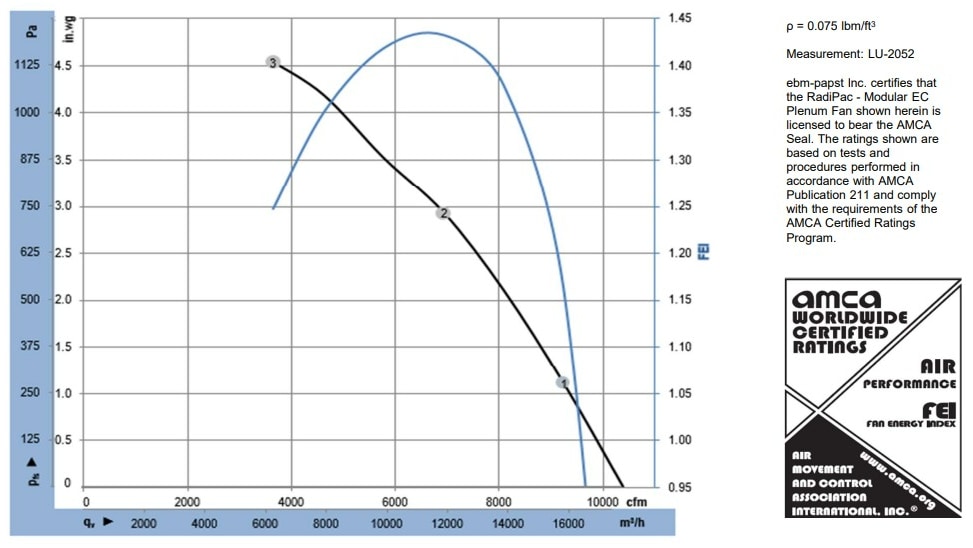

Fan Performance Curve
• EG1R480450B • EG1R480450A
• EG1R480500A • EG1R480560A
• EG1R240450A • EG1R240560A
• EG1R240500A
