Infineon Technologies EVAL_PS_DP_MAIN Universal Evaluation Platform
Infineon Technologies EVAL_PS_DP_MAIN Universal Evaluation Platform is designed to demonstrate the EiceDRIVER™ gate driver ICs in the TO247 3-pin and 4-pin packages. The EVAL_PS_DP_MAIN board design is split into this motherboard and currently two drive cards with allowance for expansion in the future.
The first drive card (REF_PS_SIC_DP1) contains the EiceDRIVER™ 1EDC Compact 1EDC20I12MH with an integrated active Miller clamp preventing parasitic turn-on. The second drive card (REF_PS_SIC_DP2) includes the EiceDRIVER™ 1EDC Compact 1EDC60H12AH allowing a bipolar supply, where VCC2 is +15V and GND2 is negative. The EVAL_PS_DP_MAIN motherboard features a maximum voltage of 800V and a maximum pulsed current of 130A.
Features
- VCC2 gate drive voltage supply from -5V to +20V
- VCC1 supply fixed at +5V
- Gate connection via SMA-BNC connector
- Current measurement via optional Coaxialshunt
- Optimized commutation loop
- External load inductor connection
- Heatsink design allows testing at various temperatures
Associated Eval Boards
Infineon Technologies CoolSiC™ MOSFET 1200V Evaluation Platform
Demonstrates the 45mΩ CoolSiC™ 1200V SiC Trench MOSFETs and EiceDriver™ Gate Driver ICs.
Infineon Technologies REF-1EDC60H12AHDPV2 Bipolar Supply Function Board
Bipolar Supply Function Board is the second drive card of the universal evaluation platform.
Infineon Technologies REF-1EDC20I12MHDPV2 Miller Clamp Function Board
The first drive card of the universal evaluation platform with the 1EDC60H12AH EiceDRIVER™ IC.
Associated Products
Infineon Technologies 1-Channel EiceDRIVER™ MOSFET Gate Driver ICs
The crucial link between control ICs, powerful MOSFET, and GaN switching devices.

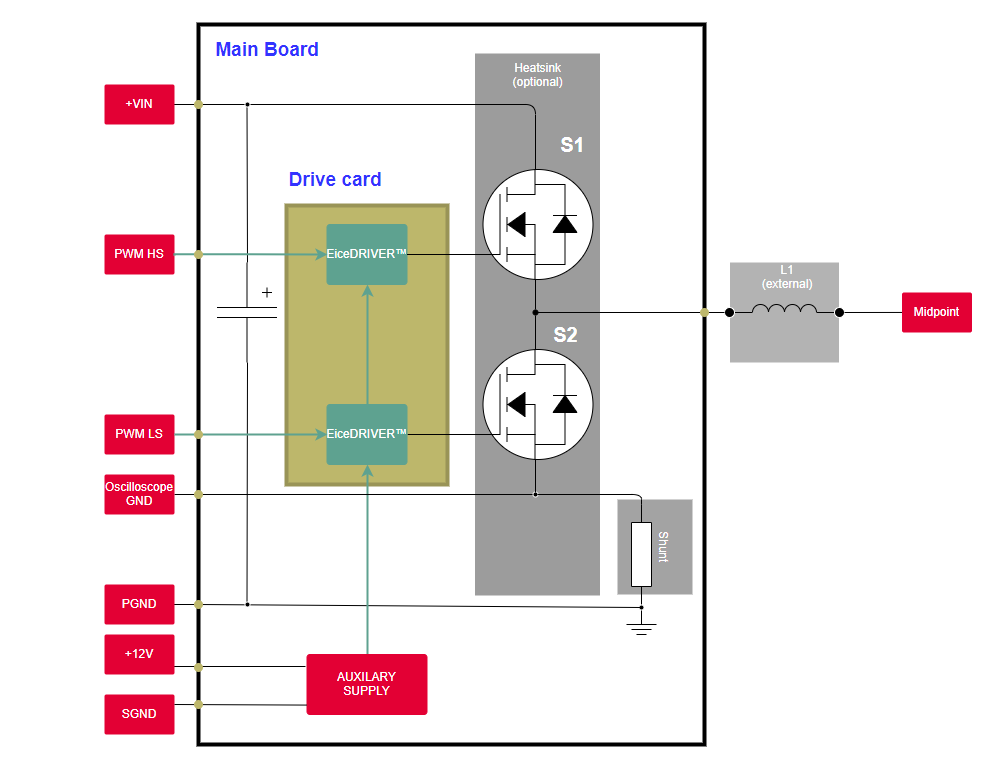

Block Diagram

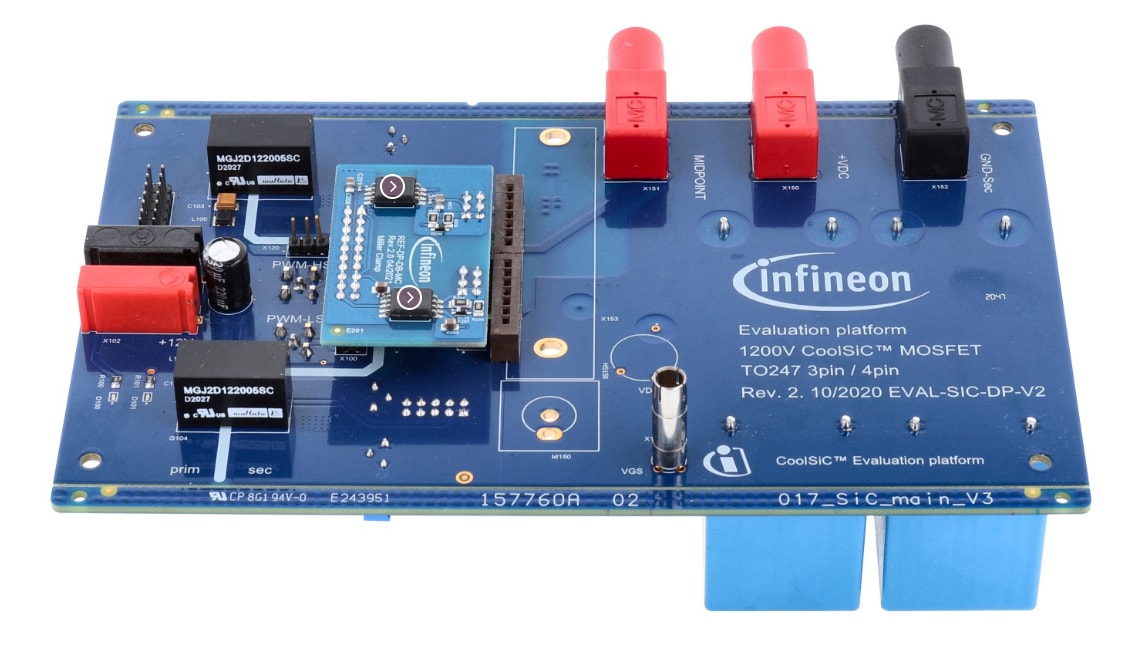

Overview
