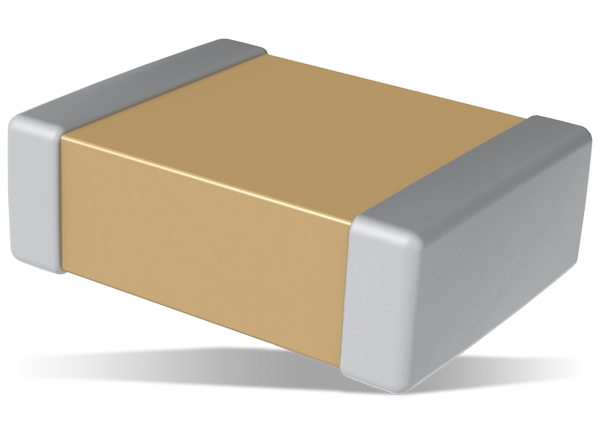

KEMET C0G Flexible Termination Capacitors

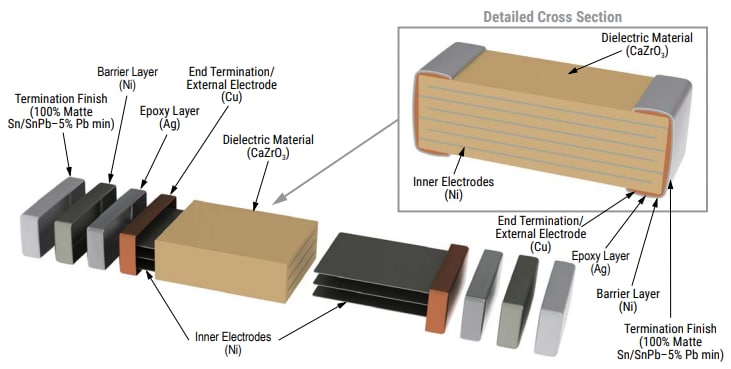

KEMET C0G Flexible Termination (FT-CAP) Capacitors provide superior flex performance up to 5mm, a capacitance range from 1pF to 0.47µF, and a voltage range from 16V_DC to 250V_DC. These multilayer ceramic chip capacitors (MLCCs) utilize a unique, flexible termination system that is integrated with KEMET's standard termination materials. This flexible termination technology combats flex cracking, which is the primary failure mode of MLCCs. Flexible termination technology directs board flex stress away from the ceramic body and into the termination area, mitigating flex cracks that can lead to low IR and short circuit failures. These flex-robust devices are RoHS-compliant and exhibit no change in capacitance with respect to time and voltage.

Features

-55°C to +125°C operating temperature range
Superior flex performance (up to 5mm)
Lead (Pb) free, RoHS and REACH compliant
EIA 0603, 0805, 1206, 1210, 1812, 1825, and 2220 case sizes
16V, 25V, 50V, 100V, 200V, and 250V DC voltage ratings
1pF to 0.47μF capacitance
±0.10pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%, and ±20% capacitance tolerance range
No piezoelectric noise
Extremely low ESR and ESL
High thermal stability
High ripple current capability

Preferred capacitance solution at line frequencies and into the MHz range
No capacitance change with respect to applied rated DC voltage
Negligible capacitance change with respect to temperature from -55°C to +125°C
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish allowing for excellent solderability
Commercial and automotive (AEC–Q200) grades available
SnPb termination finish option available upon request (5% Pb minimum)

Applications

Critical timing
Tuning
Circuits requiring low loss
Circuits with pulse
High current
Decoupling

Bypass
Filtering
Transient voltage suppression and blocking
Energy storage in critical and safety relevant circuits without (integrated) current limitation
