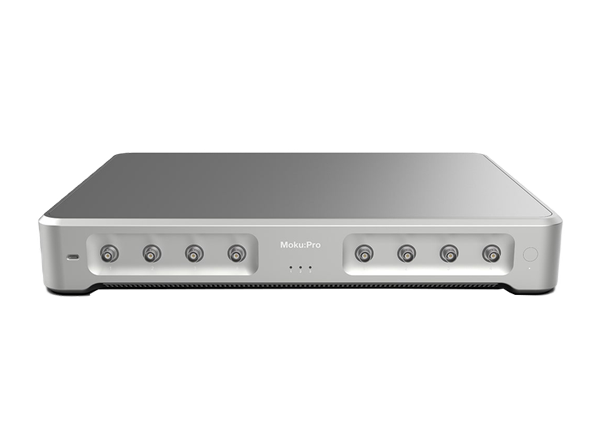

Liquid Instruments Moku:Pro Integrated Hardware Platforms
Liquid Instruments Moku:Pro Integrated Hardware Platforms combine high-performance hardware with the versatility of software-defined instrumentation to deliver an all-inclusive test and measurement solution. A high-performance Xilinx Ultrascale+ FPGA is coupled with a high-bandwidth analog front-end and robust networking and storage. Moku:Pro’s suite of software-defined instruments support high-speed data acquisition, processing/visualization, waveform generation, and real-time control applications. An innovative hybrid front-end design performs frequency-dependent signal blending from multiple ADCs, delivering exceptional noise performance from acoustic to radio frequencies.
Moku:Pro’s multi-instrument mode allows the use of multiple instruments simultaneously and lets users connect these instruments to build a customized test system. Instruments running in this mode can be chained together to build sophisticated signal-processing pipelines. Advanced users can even drop in custom features designed in Moku Cloud Compile. Connections to the analog inputs, analog outputs, and adjacent instruments are run-time configurable for instant gratification.
Features
- 5x or 9x instruments (depending on model)
- Multi-Instrument Mode (MIM)
- 4x analog inputs up to 600MHz, 5GSa/s
- 4x analog outputs up to 500MHz, 1.25GSa/s
- 120GB SSD high-speed onboard storage
- 0.3ppm clock stability
- <650ns input-to-output latency
- Wi-Fi, Ethernet, and USB connectivity
- Multi-instrument mode
- Powered by a Xilinx Ultrascale+ FPGA
- Low-frequency noise
Applications
- 600MHz lock-in amplifier
- Pump-probe/ultrafast spectroscopy
- Laser scanning microscopy
- Magnetic sensing (magneto-optical Kerr effect)
- Laser frequency stabilization
- 4-channel 500MHz waveform generator
- Signal simulation
- Laser scanning microscopy
- Circuit design and characterization
- System synchronization
- Clock source
- DAC/op-amp characterization
- 4-channel spectrum analyzer
- Frequency domain analysis
- System response characterization
- Noise measurement
- RF system design
- Spurious signal identification
- 4-channel 500MHz arbitrary waveform generator
- Random pattern scanning
- System response simulation
- Additive manufacturing
- Quantum optics
- Quantum computing
- Multiple input/output PID controller
- Feedback and control system design
- Laser frequency stabilization
- Temperature regulation
- Scan heads/sample stage positioning
- Pressure, force, flow rate, and other controls
- 600MHz oscilloscope
- Signal monitoring and analysis
- Circuit design and characterization
- Jitter/clock analysis
- Photodetector alignment
- Automated system test
- System test and debug
- 300MHz phasemeter
- Oscillator analysis
- Optical/ultrasound ranging
- Gravitational-wave detection
- Interferometry
- Phase-locked loop
- Ultra-low-noise frequency response analyzer
- Impedance measurement
- Capacitance/inductance measurement
- Stability analysis
- Power supply analysis
- EMI filter characterization
- 4-channel ultra-low-noise data logger
- Temperature monitoring
- Vibration analysis
- Environment monitoring
- Sensor logging
- Laser lock box
- Pound-Drever_Hall technique
- Precision spectroscopy
- Gravitational-wave detection
- Custom phase-locked loops
- Other closed-loop control systems
Specifications
- Analog inputs
- 4-channel
- 600MHz (up to 2 channels) bandwidth, 300MHz (up to 4 channels)
- 5GSa/s (1 channel) sampling rate, 1.25GSa/s (4 channels)
- 10-bit and 18-bit ADCs with automatic blending
- 40V maximum voltage
- 50Ω or 1MΩ input impedance
- AC/DC input coupling
- 16kHz AC coupling corner into 50Ω, 1.6Hz into 1MΩ
- 30nV√Hz input voltage noise at 100Hz
- 500μVRMS input-referred noise
- Analog outputs
- 4-channel
- 500MHz (±1V) bandwidth, 100MHz (±5V)
- 1.25GSa/s sampling rate
- 16-bit resolution
- 10V into 50Ω
- 50Ω output impedance
- DC output coupling
- User interface
- iPad App
- Windows and Mac Apps
- Programming environment
- Python
- MATLAB
- Additional ports
- Ethernet
- USB-C™
- 10MHz reference clock in and out
- External trigger input
- TTL compatible trigger waveform
- DC to 5MHz trigger bandwidth
- Hi-Z trigger impedance
- 1.8V to 5V trigger level range
- BNC connector
- Clock reference
- Onboard clock
- 10MHz frequency
- <300ppb stability
- 10MHz reference input
- Sine/square waveforms
- 10MHz ±20kHz frequency
- -6dBm to +10dBm input range
- BNC connector
- 10MHz reference output
- Square waveforms
- 10MHz output frequency
- 6dBm output level
- BNC connector
- Onboard clock
- 115W typical power consumption
- Temperature ranges
- 0 to +45°C operating
- -10°C to +60°C storage
- 5% to 95% humidity, non-condensing
- Intended for indoor use only
- Pollution degree 2
- Overvoltage category (OVC) II
- 17.30" x 13.00" x 2.80" in dimension (WxDxH)
- Connectivity
- 4x BNC analog inputs
- 4x BNC analog outputs
- Network
- Ethernet (10/100/1000 Base-T)
- Wi-Fi 802.11 b/g/n
- Type-C USB data port
- 1x BNC external trigger input
- 1x BNC 10MHz clock reference input
- 1x BNC 10MHz clock reference output
- 2x included rack-mount brackets, secured by 4 screws each

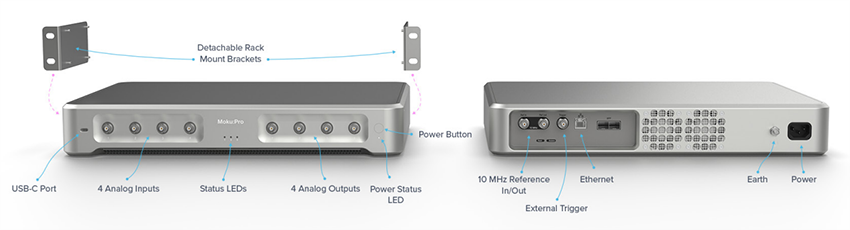

Diagram
