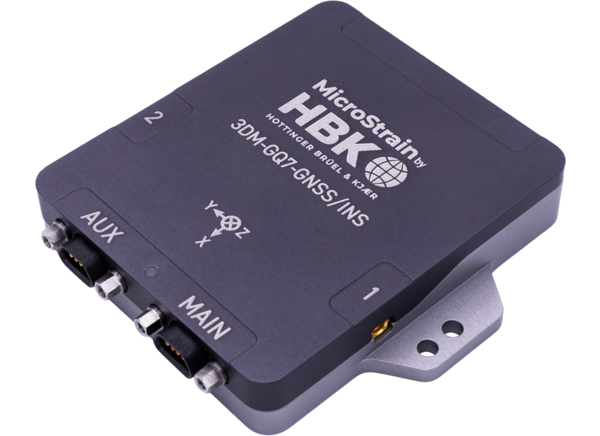

LORD Microstrain GNSS Inertial Navigation Systems (INS) are all-in-one navigation solutions with centimeter-level position accuracy. The 3DMGQ7 is a dual-antenna, RTK enabled INS designed for performance in unpredictable conditions. It's equipped with dual multiband GNSS receivers, low noise and low drift MEMS inertial sensors, and a robust adaptive Kalman filter. Pair with the 3DMRTK Modem and SensorCloud RTK corrections service for a single-vendor RTK navigation solution.
Up to 1cm + 1 ppm positional accuracy with RTK
Multi-frequency GNSS receivers provide 1.2m single point L1/L2 position accuracy
Multi-constellation receivers with 184 tracking channels each allow for rapid signal acquisition and robust signal tracking in challenging
Dual GNSS antenna heading with 0.2° heading accuracy that is immune to magnetic disturbances
Tactical grade IMU with <2°/hr bias instability provides exceptional position accuracy during GNSS outages
0.1° pitch/roll accuracy
Accepts standard RTCM real-time kinematic (RTK) corrections
