Microchip Technology Adaptec® SmartRAID Ultra 3258p-16i (3258UPC16IXS)

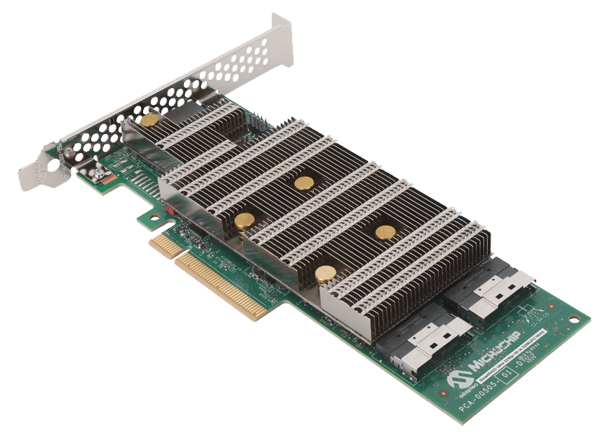

Microchip Technology Adaptec® SmartRAID Ultra 3258p-16i (3258UPC16IXS) is designed to provide high-performance memory-based PCIe storage, offering up to 29.6GB/s throughput and 3.5M+ IOPs 4K random reads. Based on the SmartROC 3200 storage controller, the SmartRAID Ultra 3258p-16i /e supports an x16 PCIe Gen 4 host interface with 16 media-facing port variants for internal tri-mode connectivity.
The Microchip Technology Adaptec SmartRAID Ultra 3258p-16i includes Trusted Platform support which delivers compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project. For additional layers of security, the included Adaptec maxCrypto Controller-Based Encryption (CBE) solution supports SAS, SATA, NVMe media, and Self-Encrypting Drive (SED) management software.
The SmartRAID 3258p-16i adapter also supports both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry-leading storage management standards, including Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) and the ChipLink Diagnostic Tool to simplify integration and accelerate time to market.
Features
- 24G SAS adapter support for industry-standard SAS-4 connectivity
- 16Gbps NVMe Gen 4, 24Gbps SAS-4, and 6Gbps SATA full Tri-Mode SAS/SATA/NVMe adapters
- 16-lane (x16) PCIe Gen 4 host interface
- Dynamic power management
- Up to 29.6GB/s throughput and 3.5M+ IOPs 4K random reads
- 144-bit DDR4 3200MHz memory option with enhanced throughput on redundant RAID writes and NVMe CBE (11.7GByte/s for RAID5 writes and 17GB/s for NVMe CBE)
- Up to 8GB of high-speed DRAM cache with integrated cache protection
- Integrated PCIe Switch enables DirectPath technology for low latency and high bandwidth NVMe solution
- Dynamic Channel Multiplexing (DCM) technology aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled throughput
- Microchip Trusted Platform support with compute and supply chain security based on Hardware Root of Trust
- Expanded unique maxCrypto™ Controller-Based Encryption (CBE) solution to support SAS, SATA, and NVMe media
- Self-Encrypting Drive (SED) management software
- Common management experience across Smart Storage platform and Tri-mode media
- Support for both Intel Virtual Pin Port (VPP) for intelligent backplane management and SFF Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility
- SGPIO and SCSI Enclosure Services (SES) allow a common way to manage device status and activity for directly connected storage devices or devices connected behind a SAS expander
- Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE)
- BMC Integration with PBSI and MCTP Support
Applications
- Data centers
- Server OEMs
- Storage systems
- Enterprise customers
Specifications
- Data transfer rate (SAS): 24Gb/s per port
- Standard memory
- 5x 8GB DDR4 used in standard configuration
- 32MB SPI Flash
- 128kB SAS FRU EEPROM
- Controller: 24Gbps SmartROC 3200
- Form factor: Low-profile, MD2
- Generation: PCIe Gen 4 / SAS-4
- Interface: 16-Lane PCIe Gen 4
- Port count: 16 internal
- Connectors, internal: 2x SlimSAS x8
- Maximum number of disk drives: 16 (SAS/SATA/NVMe)
- Enclosure Support UBM, VPP, SGPIO
- Physical dimensions: 64mm x 167mm (2.535" x 6.6")
Related Products
Microsemi / Microchip Adaptec® SmartRAID 3100 SAS/SATA RAID Adapters
Full featured RAID adapters offering up to 1.7 million IOPS, with up to 24 native ports in LP/MD2.

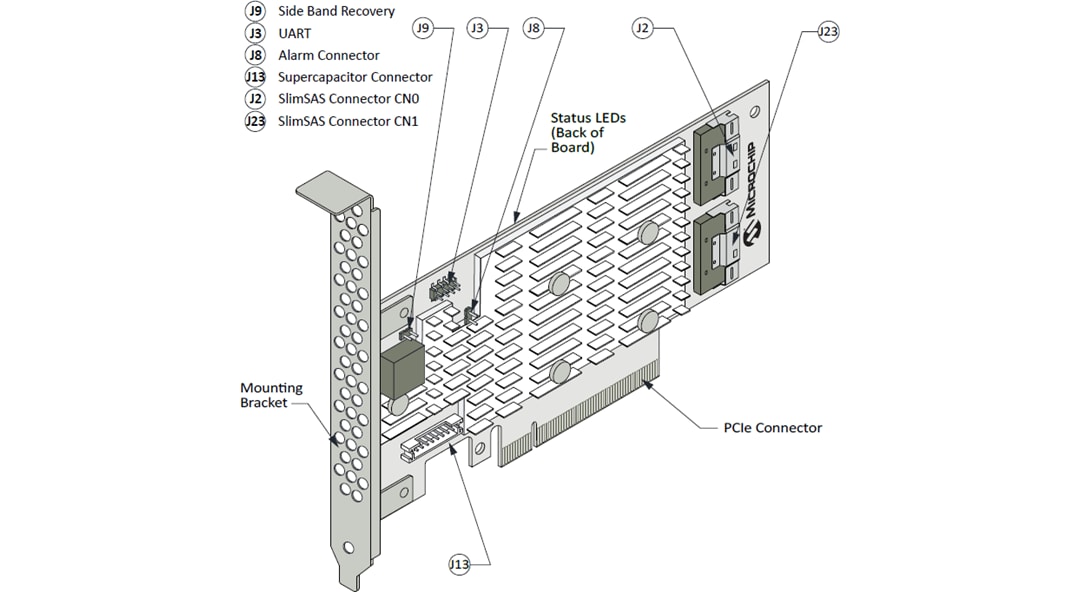

Layout
