Teltonika RUTM52 Dual 5G Routers

Teltonika RUTM52 Dual 5G Routers are designed to offer high-speed and uninterrupted connectivity solutions. These routers support SA and NSA architectures to leverage the 5G infrastructure. The RUTM52 routers include dual 5G modems, multi-WAN capabilities, and a 4G LTE Cat 20 fallback. These routers feature a 16MB serial NOR flash, 5W idle power consumption, and reboot/user default reset/factory reset button. The RUTM52 routers comply with CE, UKCA, RCM, FCC, IC, EAC, UCRF, and WEE regulations. These routers operate within the -40°C to 60°C temperature range and are IP30-rated. The RUTM52 routers are compatible with RMS and are ideal for secure remote management.

Features

  • Mobile:
    • Possibility to use different PDNs for multiple network access and services
    • Auto APN
    • Direct connection (bridge) between mobile ISP and device on LAN
    • Framed routing: Support an IP network behind 5G UE
  • Wireless:
    • ESSID stealth mode
    • Allowlist and blocklist wireless MAC filter
  • Network:
    • Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), and policy-based routing
    • Connection monitoring: Ping reboot, Wget reboot, periodic reboot, LCP, and ICMP for link inspection
    • Firewall: Port forward, traffic rules, custom rules, and TTL target customization
    • Initial virtual routing and forwarding (VRF) support
    • Traffic management: Real-time monitoring, wireless signal charts, and traffic usage history
  • Security:
    • 802.1x port-based network access control client
    • Port and tag-based VLAN separation
    • Access control: Flexible access control of SSH, web interface, CLI, and Telnet
  • VPN:
    • GRE tunnel and GRE tunnel over IPsec support
    • SSTP client instance support
    • ZeroTier VPN client support
    • WireGuard VPN client and server support
  • Location tracking:
    • GPS, GLONASS, BeiDou, Galileo, and QZSS
    • GNSS coordinates via WebUI, SMS, TAVL, and RMS
    • NMEA 0183
  • Power:
    • 4-pin industrial DC power socket
    • 9VDC to 50VDC input voltage range, reverse polarity protection, and surge protection >51VDC 10μs max
    • 5W idle power consumption
  • Operating environment:
    • 10% to 90% non-condensing humidity range
    • -40°C to 60°C operating temperature range
    • IP30 rated
  • Complies with CE, UKCA, RCM, FCC, IC, EAC, UCRF, and WEE regulations

Applications

  • Secure remote management
  • Mission-critical requirements

Kit Contents

  • RUTM52 Router
  • 18W PSU
  • 8 x 5G mobile antennas (magnetic mount and SMA male)
  • 2 x Wi-Fi® antennas (magnetic mount, RP-SMA male, and 1.5m cable)
  • 1 x GNSS antenna (adhesive, SMA male, and 3m cable)
  • Ethernet cable (1.5m)
  • SIM adapter kit
  • Quick Start Guide (QSG)
  • Packaging box

Front View

Teltonika RUTM52 Dual 5G Routers

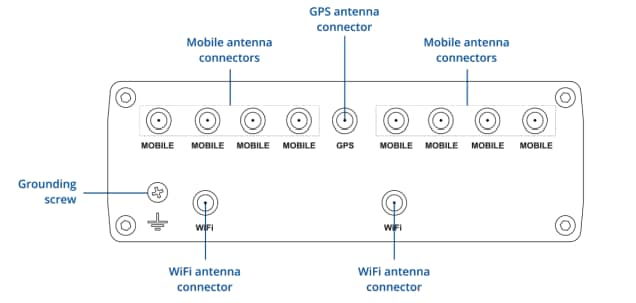

Back View

Teltonika RUTM52 Dual 5G Routers

Additional Resource

Videos
